Creating Internal Gun Models

Author: Z@NARDI

This tutorial is intended to assist new editors with making an internal gun model. I won't be covering Power Ups or External Mode much, but I will be working right with you with pictures of every step I make, and if you have any questions that you would like to have answered quickly you can reach me on ICQ. My UIN is 43779070.

The materials you'll need are

Okay, the first thing you should do is create a gun model. Make sure you have it facing down, so when you go to View Mode 3 (Shift + 3) the gun handle is on the left and the gun is facing down. Now, if you've already started making your gun and it's not facing down, just hit F9 and rotate your gun on its X-axis at a 90 degree angle. If that doesn't work just try different things out; here is mine (notice I haven't put it facing down yet)...

...(yes it sucks, but it's just an example) and remember guns don't have to be a great piece of architecture. The biggest reason for that is just one word: texturing. Texturing a 1000-surface gun can be annoying. Also when creating your gun, you want it to be sized correctly right? Click on "View" in JED, then go to View things as: and click wireframe. I use Kyle to make sure my gun is correct size, you can use another gun if you want it to be the size of, say, the Stormtrooper rifle. After you have finished your gun, create a folder in your \JediKnight\Resources directory and name it 3do. In JED select your gun sector(s) (to multi-select hold Alt and drag your mouse over all sectors), but before exporting it as a 3do: while you have all the sectors selected, hit Enter or go to Items Editor, you'll see a window that tells you at top what sector # it is, how many surfaces and vertices, etc. Look down that window till you come across +LAYER; type in K_WEAPON to replace "Layer0." That's it. Now go to File, then Export Sectors as 3do, then save your gun (e.g. gun.3do).

Working on the Internal Mesh:

Okay, now open up Word Pad, then open up gun.3do (or whatever file name you just gave it). Again, I'll use mine:

Now, if you scroll down you see a bunch of numbers: those numbers are just your 3do. The first thing you see after the Header and Modelresources sections you see a list of materials. It says Materials, and next to that is a number that tells us how many textures we used—I didn't texture mine so it stayed at the default texture, but if you textured yours it'll have a list of the different textures you used. If you did texture yours just make sure you didn't use more than 9 textures (I'll explain why a little further down).

Look down a bit further where it says: MESHES. It's right under GEOSET and right before MESH 0. MESHES are basically used for animation: say I want a part on my weapon to move on its own, I'd select the sector(s) that I wanted to move, and on the Item Editor where it says +LAYER I'd give it a name. If I named it KICKER, and I also had the rest of my weapon at K_WEAPON, under that: MESHES in the 3do it would say 2 (one mesh for my K_WEAPON and one for my KICKER) now one line down where it says MESH 0, that just tells you what the mesh number is. Since there is only one mesh it means that's the only one. Another line down, it says NAME K_WEAPON: if yours doesn't say K_WEAPON change it. It doesn't hurt anything, just makes it look like mine, but you don't want to mesh with anything else. Now you're going to do some copy-n-pasting. Back to talking about meshes:

MESH 0
NAME K_WEAPON
RADIUS .028153
GEOMETRYMODE 4
LIGHTINGMODE 3
TEXTUREMODE 1

after that part of the mesh, it says VERTICES

then a number (remember in the Item Editor it tells you that; that's just how many vertices are in your mesh or gun). After you scroll past your number of vertices, how ever many there may be in your weapon, you'll find this:

TEXTURE VERTICES (##)

There will be a number after that: remember it all varies with different guns:

What I've highlighted is the end of the 48 vertices (it says 47 because it starts on 0) and the TEXTURE VERTICES, then I have the beginning of the Texture vertices... I think you get the idea now, so I'll just tell you the rest of what is under VERTICES and TEXTURE VERTICES. This is how it looks:

VERTICES (##)
TEXTURE VERTICES (##)
VERTEX NORMALS
FACES(##)
and the last thing
FACE NORMALS

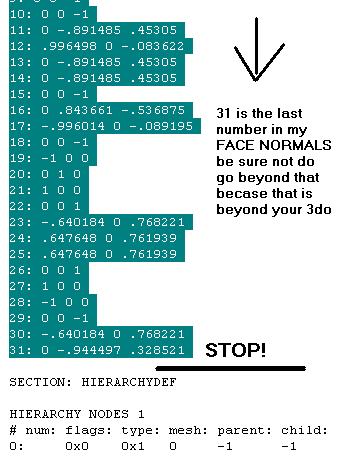

All that makes up your gun. What you want to do now is copy all of the text from NAME K_WEAPON ---> through to \<---face normals:

Once you have all of that highlighted go to Edit, and hit Copy. Now open up the intgun.3do that comes with this tutorial. Under MATERIALS you see 16 of them: 9-15 are used up if you see that. Don't change those unless you want Kyle's hand to have different textures. If you used any textures you need to put those in your MATERIALS. For example, say I use 00_base.mat, 00_base1.mat and 00_base2.mat as textures for my gun. This is what I would do in that MATERIALS part:

That's why you can't use more that 9 textures on your gun. Also, you can't delete those dflt.mat textures 3-8 even if you don't use dflt.mat texture. If you do delete them your gun won't work. Simple as that. Now, scroll down till you see: MESHES 4. That says how many meshes we have (as mentioned earlier). The first mesh you see is K_Rhand (MESH 0) or Kyle's right hand. If you scroll further down the second mesh is K_Rshouldr (MESH 1): that's Kyle's right shoulder. Scroll down some more and you'll find K_Rforearm (MESH 2), Kyle's right forearm. Down some more is K_WEAPON (MESH 3) (if so far you're lost, go to Edit then find type in the meshes (e.g. K_Rshoulr) and it'll highlight it for you). Now back to K_WEAPON: you will see it has 0 vertices, 0 texture vertices, no vertex normals, 0 faces and no face normals. This is what you want to do with that:

Highlight it just like I've done. Now go to Edit and hit Paste. If you copied every thing right your weapon you made will be up there. Now go to File and hit Save As... Save it as BryV.3do and make sure you save it in your \JediKnight\Resources\3do directory (FYI: when I use my version of Word 97 I have to hit Save As... and select "Text Document - MS-DOS Format")

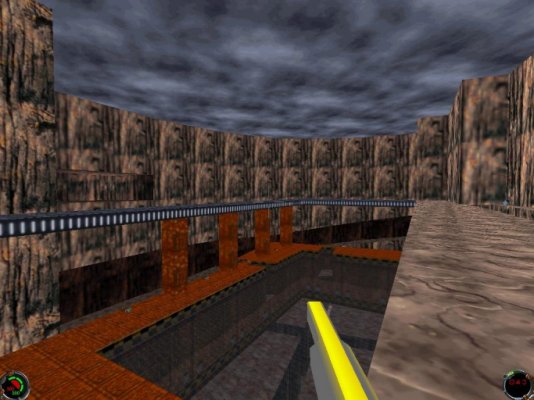

Okay, after you've saved your weapon as BryV.3do (which is the internal mode for the bryar pistol) and you've saved it in your Resources\3do directory, fire up Jedi Knight and see how it looks:

MAGICALLY THERE'S A GUN! That wasn't so hard, now was it? If it was, or you didn't understand what I just wrote, give me a buzz on ICQ @ 43779070. If you don't have ICQ e-mail me at soulfly_tribe99@hotmail.com.
